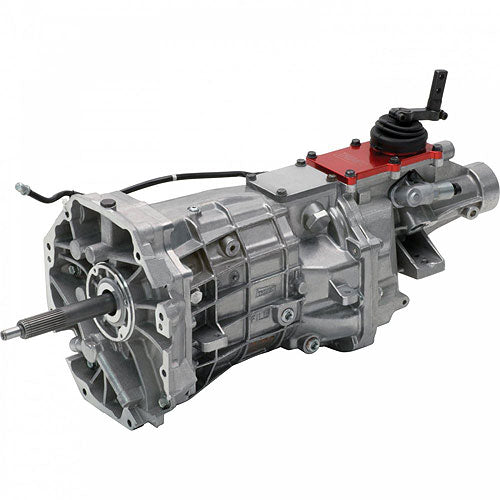

T56 Super Magnum 6 Speed Manual Transmission

Able to withstand 700 ft/lbs torque while providing unbelievably crisp shifts, the Super Magnum T56 Transmission is the kingpin of Tremec's high-performance lineup. No other manual transmission offers as much combined strength, ease of use, and versatility as the T56 Magnum. This high-torque capacity TREMEC six-speed manual is specially designed for custom, retro-fit installations with Chevrolet Performance crate engines. The exterior case similar to fourth-generation F-body transmission with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060. It also features a 40-tooth reluctor ring that's necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers.

Features:

• 700 lb.-ft. Maximum Torque Capacity
• 26-Spline Input Shaft
• 31-Spline Output Shaft
• Gear Ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
• Slip-Yoke Design
• Two-Position Shifter Plate Included, With Third Position Built Into The Transmission

Get your new T56 Magnum on the road with Chevrolet Performance's T56 Super Magnum Installation Kits: bellhousing, flywheel, clutch, clutch release bearing, pressure plate, dust covers, and hardware available separately.
